200 ton small PET plastic injection machine

  • 200 ton small PET plastic injection machine
  • 200 ton small PET plastic injection machine
  • 200 ton small PET plastic injection machine
  • 200 ton small PET plastic injection machine

200 ton small PET plastic injection machine

    Payment Type: L/C,T/T
    Terms of Trade: FOB
    Min. Order: 1 Set/Sets
    Delivery Time: 30 Days
    Packaging: standard export packing
    Brand: Bole Machinery
    Transportation: Ocean
    Place of Origin: Zhejiang, China

Basic Info

Model No.: BL200EKH-PET

Product Description

200 ton PET inject mold machine

1. Bole Product Description

We are professional plastic injection molding machine manufacturer for all kinds of production requirements, Clamping force from 100 to 750T , injection weight from 350 to 6781g . with best price& performance ration of any machine on the market.

Some of the important features:
  • Clamping system: Faster response, stable and high rigidity
  • Injection system: Accurate and flexible, lower rejection rate
  • Control system: Computer and simple operation,molding data memory system
  • Power system: Energy saving, high efficient and precise
  • Metal parts: The thickness of our frame, metal plate and wallboard are thicker than Other company.

2. Product Instructions


Energy Saving Moulding Machine

centre clamping

EKH系列PET瓶胚专用机技术参数表 UNIT BL200EKH/C980/PET
国际标准规格 International specification 980
螺杆直径 Screw diameter Screw specification Special for PET
mm 50
螺杆长径比 Screw L/D ratio 25.0
理论注射容积 Theoretical injection capacity cm3 530
Shot weight(PET) g 609
oz 21.5
最大对空注射速率 Injection rate into Air cm^3/s 247
最大对空注射速率 g/S 225
注射压力 Injection pressure MPa 186
理论塑化速度 Theoretical plasticizing speed g/S (PET) 35
注射行程 Injection stroke mm 270
最大注射速度 Max. injection speed mm/s 126
最大螺杆转速 Screw speed r/min 221
系统压力 Sys. Pressure MPa 17.5
电机总功率 Pump Motor(Min~Max) kW 20.5~27.8
电机数量 number of Motors PC 1
电热功率 Heater power kW 15
温控区数 Number of temp. control zones 3+1
锁模力 Clamping force kN 2000
开模行程 Opening stroke mm 480
拉杆内间距 Space between tie bar mm x mm 505×455
最小模具厚度(T型槽) Min. mould height mm 200(165)
最大模具厚度(T型槽) Max. mould height mm 530(530)
最大模板距离(T型槽) Max. Daylight mm 1010(1010)
顶出行程 Ejector stroke mm 150
顶出力 Ejector force forward kN 67
顶针回缩力 Ejector force back kN 39
顶出杆数 Number of ejector bar PC 5
干循环时间 Dry cycle time S 2.5
能耗(注1) Energy consumption level kW.h/kg ≤0.5
料斗容积 Hopper capacity kg 25
油箱容量 Oil tank capacity L 230
机械外形尺寸(约) Machine dimensions(L×W×H) m x m x m 5.1x1.4x2.2
机器重量(约) Machine weight Ton 5.5

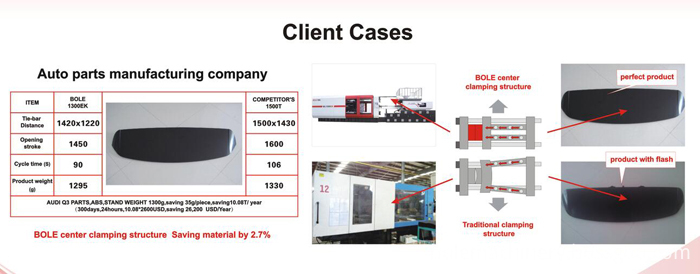

3. Clients Cases

small plastic injection machine
plastic molding machines

plastic moulding machines

4. About Bole Machinery

Bole Machinery is more and more popular among domestic and foreign powerful companies due to the advantages, there is strategy cooperation partner relationship with Gree Group. Bole Machinery has become the preferred brand in Chinese house- hold electrical appliances industry, and automotive industry as well. It is successfully accepted in the markets of USA, South Korea and European countries with the high sale growth under the situation of recession strike in the global markets.

The world`s leading processing equipment

small plastic injection machine

shuangma machine

plastic injection molding machine


  • 1
  • 2
  • 3
  • 4
  • 5

BOLE Machinery (hereinafter referred to as [BOLE") was founded in 1998. As a subsidiary of CHENGLU group, BOLE is a high-tech enterprises that focus on the research, development and manufacture of precision machinery equipment. It adopts the mode of [technology from Germany, made in China", integrates design, manufacture, assembly, testing and sales, and provides complete and professional injection moulding devices for customers. BOLE injection moulding machines are developed and directed by German experts. The range of products covers nearly 100 specifications and 6 main series, including high-precision Two-Platen DK series, hydraulic servo EK-S series, full-electric FE series, carbon-fiber products intelligent moulding line CIML series, high-speed HK series and multi-materials injection MK series. The range of clamping force is from 70 ton to 6800 ton, and the range of injection weight is from 65g to 60000g.

As a latecomer in China`s injection moulding machine market, BOLE keeps competing with Other brands, and wins the trust from customers with high-performance and high-stability product as well as customized service. So far, BOLE injection moulding machines have been sold and exported to more than 70 countries. Especially in the last three years, the developed countries in America and Europe have grown into the main markets of BOLE.

BOLE proposes a comprehensive strategic partnership with the well-known household appliances enterprises including GREE, TCL, AUX, etc. Meanwhile, BOLE plays an important role in Auto industry and builds a strategic cooperation with famous auto-part suppliers including Ningbo HuaXiang Group, Germany Adler Pelzer Group, etc. So far BOLE has entered the supporting systems of Auto-part manufacturers and suppliers including Beijing Benz, Shenyang Huachen BMW, China FAW Group, Shanghai Volkswagen, Shanghai General Motors, Geely Automobile, etc.

In the future BOLE will take intelligence, efficiency, precision and energy saving as the direction of innovation and development, and concentrate on improving the core competitiveness of customers. Besides, BOLE will also continue to advance the path integrated by Hi-Tech industry development, professional production and perfect sales, and establish a sustainable modern high-tech brand.

[BOLE Story]

2020 Successfully developed high-speed packaging machine, to create Bole Jiangxi Industrial Area

2019 Successfully developed optical machine, tie machine, and have been put into the market.

2018 R&D succeeded on well-built MK series.

2017 Joined China plastics processing industry association (CPPIA) and became the governing unit; R&D success on the next generation of EK-S series.

2016 Launched servo energy-saving injection moulding machine EKII series.

2015 The team led by a senior German expert, developed world-leading Two-platen machine DK series successfully; Carbon-fiber products intelligent moulding line CIML series was developed and launched; became No.1 on the growth rate of China's plastics industries; established a Strategic cooperation with Gree Electric Appliances Inc.

2014 Became the Top 25 enterprise of comprehensive strength among China`s plastic machinery industry; became the Top 10 among injection moulding machine enterprises in China.

2012 Large-volume injection moulding machine was developed.

2011 BOLE entered the rapid development stage, and Central Locking Structure of EK series was awarded the national patent. ( Patent No.ZL201110250342.5 )

2010 The third generation super-energy-saving servo precision injection molding machine EK series was developed and launched totally with cost effectiveness, outer-crank-shaft mechanism and larger parameters; BOLE`s scientific research bases were established for servo energy-saving project in Chinese Academy of Sciences (CAS) and Nanjing University of Aeronautics and Astronautics (NUAA).

2009 Launched small and medium-sized injection molding machines of EK series successfully; The Malaysian factory was completed and put into operation; Bole developed rapidly on transnational operation.

2008 Invested 130 million RMB, Introduced top talent from abroad, and developed successfully EK series injection moulding machine with central locking mechanism.

2007 CHENGLU Group wholly owned SHUANGMA Machinery, and invested 300 million RMB to build BOLE industrial park.

2006 Awarded Nation High-tech Enterprise by the ministry of science and technology.

2005 Energy-saving servo system was developed with proprietary intellectual property rights, and the first set of super energy-saving servo injection moulding machine was produced.

2004 undertook the national 863 scientific research project, and built provincial engineering (technology) center.

2003 listed as the Chinese Injection Molding Machine Characteristic Industrial Base.

2002 Thousand-ton-level injection moulding machine was developed with proprietary intellectual property rights.

1998 Ningbo shuangma machinery industry co. LTD. Was established.
